CI6X series impact crusher

Características técnicas

● The involute cavity design allows the material to hit the impact plate vertically and the material returns to the inlet direction in the hammer action area increasing the number of hits the crushing efficiency is significantly improved and the discharge particle shape is better.
● The overall welding process has high precision and strong impact resistance reducing current fluctuations during operation. The bonding surface of the lower frame of the rotor and the bearing seat adopts an integral processing technology to ensure the processing accuracy.
● The multi-functional full hydraulic operating system realizes full hydraulic adjustment of discharge granularity full hydraulic top opening and replacement of wearing parts. The liner is fixed by high-strength bolts and can be replaced directly from the outside reducing the labor and time cost of replacing the liner.
● The bearing seat precise positioning device reduces the operation difficulty of bearing seat positioning during maintenance. The overall blower design is reliable and fixed making the disassembly and assembly of the blower more convenient and quick.

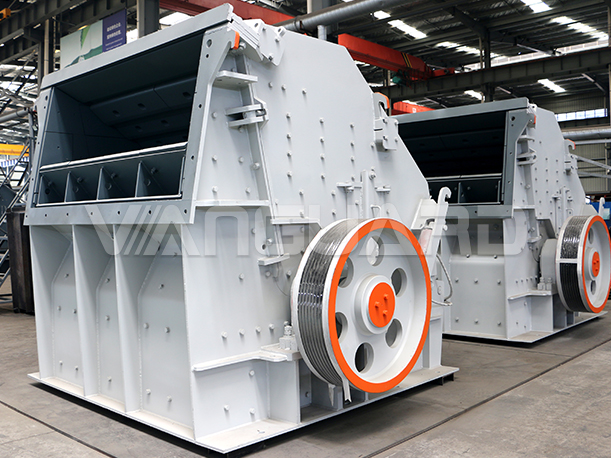

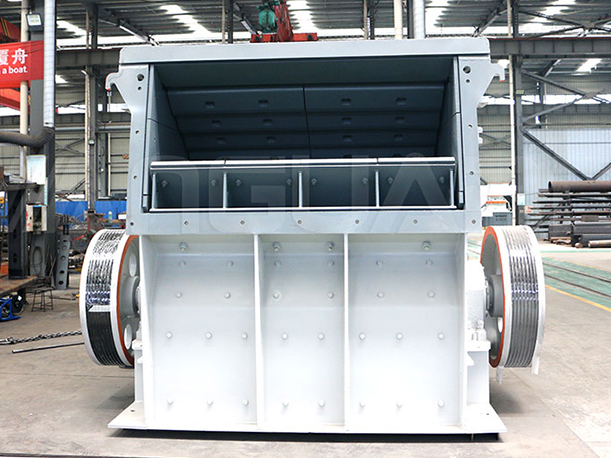

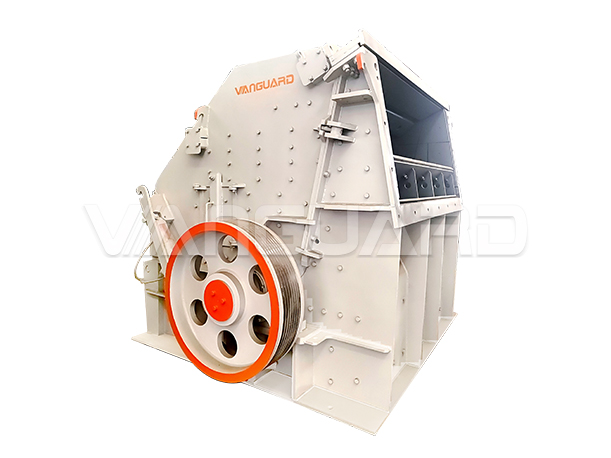

Galeria de productos

Parámetro de rendimiento

Modelo	Rotor specifications (mm)	Inlet size(mm)	Maximum feed size(mm)	Capacity (t/h)	Installed power(kW)	Power(kW)	Dimensions(mm)
CI6X1110	1100×1000	1020×820	500(recommend≤250)	150-200	160	160-200	2626×2106×1945
CI6X1213	1200×1300	1320×880	550(recommend≤300)	200-300	200	200-250	2809×2529×2091
CI6X1315	1300×1500	1540×930	600(recommend≤300)	250-350	250	250-315	2880×2755×2560
CI6X1520	1500×2000	2040×995	700(recommend≤350)	400-600	250×2	400-500	3390×3520×2790
CI6X1313	1300×1300	1320×1225	800(recommend≤550)	300-450	200	200-250	2963×2560×2611
CI6X1415	1400×1500	1540×1320	900(recommend≤600)	350-550	250	250-315	2995×2790×3090
CI6X1620	1600×2000	2040×1630	1100(recommend≤700)	500-900	200×2	400-500	3485×3605×3720
CI6X2023	2000×2300	2310×1990	1300(recommend≤800)	1200-2000	500×2	1000-1200	4890×4330×4765

Cavity Type	Modelo	Maximum feed size: 350-400mm		Maximum feed size: 200mm
Cavity Type	Modelo	Final Size: 60mm	Final Size: 40mm	Final Size: 40mm	Final Size: 20mm
Medium Crushing	CI6X1110	190t/h	150 t/h	210t/h	130t/h
	CI6X1213	250t/h	200 t/h	280 t/h	180t/h
	CI6X1315	320t/h	250 t/h	350 t/h	220 t/h
	CI6X1520	500 t/h	400 t/h	550 t/h	350t/h
Cavity Type		Maximum feed size: 800mm		Maximum feed size: 600mm
Cavity Type	Modelo	Final Size: 200mm	Final Size: 100mm	Final Size: 200mm	Final Size: 100mm
Coarse Crushing	CI6X1313	450 t/h	300 t/h	480 t/h	320 t/h
	CI6X1415	550 t/h	360 t/h	600 t/h	400 t/h
	CI6X1620	870 t/h	570 t/h	920 t/h	620 t/h
	CI6X2023	1750 t/h	1150 t/h	1950t/h	1250 t/h
